Although they are held to fairly strict standards, high voltage coils are utilized in a broad spectrum of industries including the medical field, where devices such as cathode ray tubes generate X-rays for medical imaging applications. The power generation industry uses these electrical coils for applications such as electrical power distribution. Automotive manufacturers employ high voltage coils as ignition coils in vehicles such as cars, trucks, vans and sport utility vehicles. Also, industrial manufacturing utilizes them for power generation to warehouses as well as equipment and for measurement and testing applications such as with photomultiplier tubes. There are two main types of high voltage coils: ignition coils and Tesla coils. Much more common for industrial applications, ignition coils serve to fire up the spark plugs by means transforming the current flow from the vehicle's battery (typically a twelve volt or a six volt) into the high voltage (from twenty thousand to thirty thousand volts) that is required by the spark plugs. An ignition coil consists of a core and a primary and a secondary wound wire. The primary wire is generally formed from a heavy gauge of copper that is insulated in protective materials like encapsulated coils, and contains about one hundred to one hundred and fifty turns, or coils of wire. Conversely, the secondary coil is typically formed from a fine gauge of copper, which must also be insulated and contains many more turns, generally ranging from fifteen thousand to thirty thousand turns. More common for entertainment and educational purposes, a Tesla coil, on the other hand, has been around since 1891 and is a type of resonant transformer circuit. A Tesla coil can be used to produce not only a high voltage of electricity, but also a fairly high current, and frequency. Using alternating current flow, Tesla coils are often utilized in order to produce long sparks of electricity. High voltage coils are also utilized in high voltage power transformers in order to handle elevated amounts of electrical energy in the range of six hundred to five thousand volts. High Voltage coils require detailed design parameters and rigorous quality inspection in order to build a product that can withstand the high electrical and mechanical stresses associated with 13kV motors and generators. Reliability in high voltage coil systems comes from methodical materials selection, rigorous testing, and proven methods in coil manufacturing. Quality stator coils with quality winding installation helps guard against premature failure from mechanical forces, partial discharge and corona in these machines. Innovations in high voltage coils are emerging with new technology in magnet wire, mica tapes and test equipment for this market. What is a high voltage coil? High Voltage Coils High voltage coils are electrical coils that use a voltage higher than what is generally accepted as safe. High voltage refers to a currency that is potentially dangerous due to the possibility of sparks in the air and a possible electric shock to those in contact with the coil or in close proximity. noun Electricity. a transformer for producing high-voltage alternating current from a low-voltage direct current, consisting essentially of two concentric coils with a common soft-iron core, a primary coil with relatively few windings of heavy wire, and a secondary coil with many turns of fine wire. Can low voltage convert to High Voltage? If a high voltage needs to be generated from a low voltage, a boost converter can be used. This represents one of the three elementary switching regulator topologies and requires only two switches, an inductor, and input and output capacitors. ... Boost topology for generating a high voltage from a low voltage. What are high voltage capacitors made of? High voltage capacitors with leads on four sides are often packed in trays or rails that are made of carbon-powder or fiber materials and molded into rectangular outlines that contain matrices of uniformly spaced pockets.

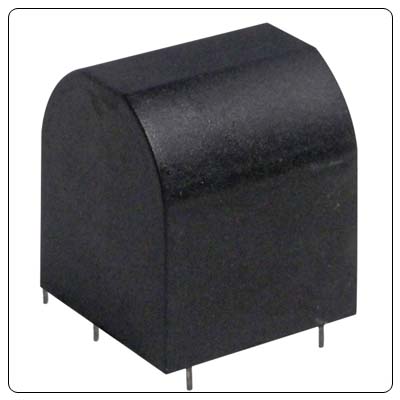

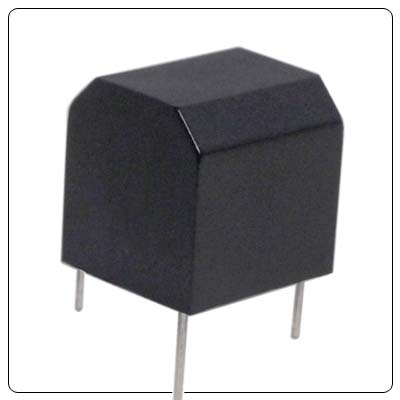

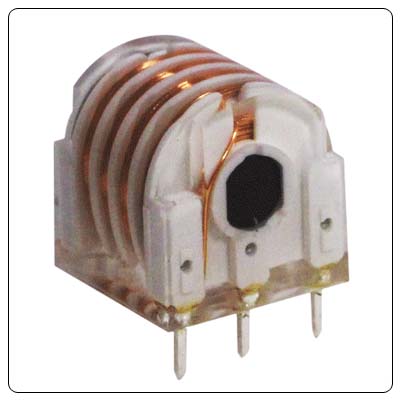

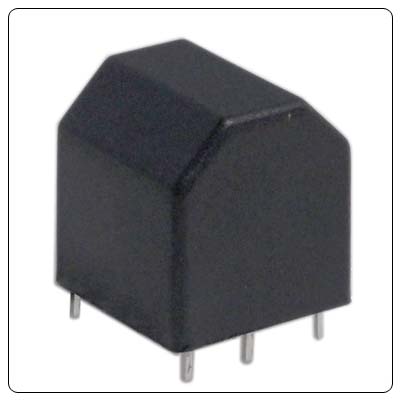

Jet Cham are manufacturer of High Voltage Trigger Coil, High Ignition Coil, High Voltage Transformers,Trigger Coil, Ignition Coil, Universal Coils, SMD Transformer, Pulse Transformer, Segmental Winding Coils, Toroidal Coils and Power Choke Coils in Taiwan, JET CHAM ENTERPRISE CO., LTD.

Jet Cham are manufacturer of High Voltage Trigger Coil, High Ignition Coil, High Voltage Transformers,Trigger Coil, Ignition Coil, Universal Coils, SMD Transformer, Pulse Transformer, Segmental Winding Coils, Toroidal Coils and Power Choke Coils in Taiwan, JET CHAM ENTERPRISE CO., LTD.

Jet Cham are manufacturer of High Voltage Trigger Coil, High Ignition Coil, High Voltage Transformers,Trigger Coil, Ignition Coil, Universal Coils, SMD Transformer, Pulse Transformer, Segmental Winding Coils, Toroidal Coils and Power Choke Coils in Taiwan, JET CHAM ENTERPRISE CO., LTD.
